Self-aligning ball bearings

2206 ETN9

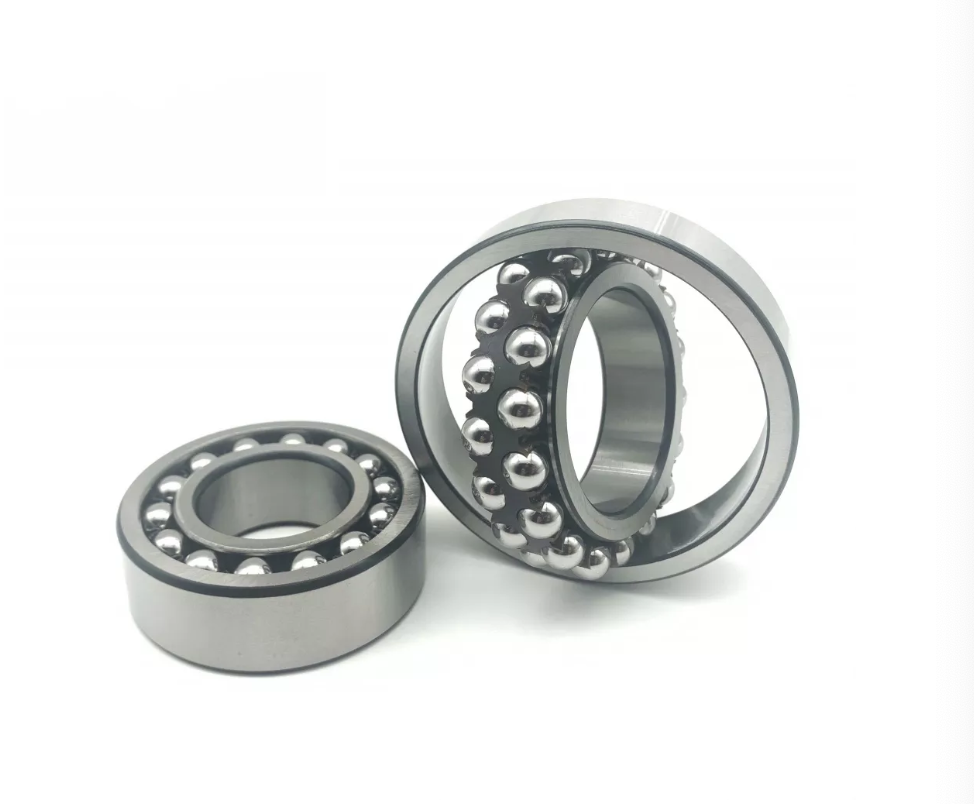

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring
功能特点
技术指标

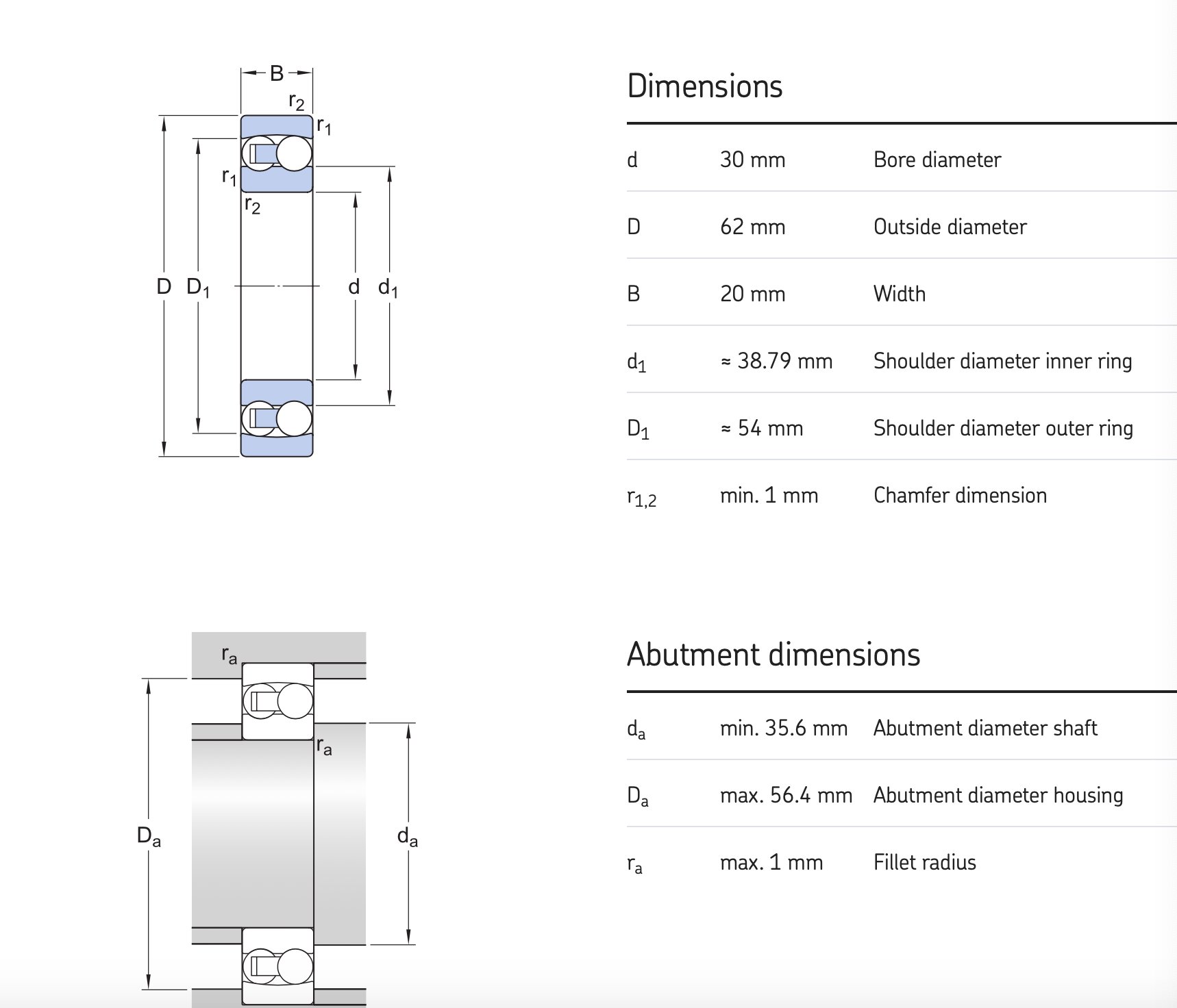

外形尺寸
Self-aligning ball bearing is a bearing equipped with spherical balls between the inner ring of two raceways and the outer ring whose raceway is spherical. With the swiveling inner ring, the stainless steel self aligning ball bearing offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. It is resistant to corrosion.
earing No. Boundary Dimensions Basic Load Ratings(kN) mm Dynamic d D B rsmin Cr 2200 10 30 14 0.6 7.3 2201 12 32 14 0.6 7.6 2202 15 35 14 0.6 7.7 2203 17 40 16 0.6 9.8 2204 20 47 18 1 12.6 2204K 20 47 18 1 12.6 2205 25 52 18 1 12.3 2205K 25 52 18 1 12.3 2206 30 62 20 1 15.2 2206K 30 62 20 1 15.2 2207 35 72 23 1.1 21.5 2207K 35 72 23 1.1 21.5 2208 40 80 23 1.1 22.3 2208K 40 80 23 1.1 22.3 2209 45 85 23 1.1 23.2 2209K 45 85 23 1.1 23.2 2210 50 90 23 1.1 23.2 2210K 50 90 23 1.1 23.2 2211 55 100 25 1.5 26.5 2211K 55 100 25 1.5 26.5 2212 60 110 28 1.5 34 2212K 60 110 28 1.5 34 2213 65 120 31 1.5 43.5 2213K 65 120 31 1.5 43.5 2214 70 125 31 1.5 44 2215 75 130 31 1.5 44.5 2215K 75 130 31 1.5 44.5 2216 80 140 33 2 48.5 2216K 80 140 33 2 48.5 2217 85 150 36 2 58 2217K 85 150 36 2 58 2218 90 160 40 2 70 2218K 90 160 40 2 70 2219 95 170 43 2.1 83.5 2219K 95 170 43 2.1 83.5 2220 100 180 46 2.1 94 2220K 100 180 46 2.1 94 2221 105 190 50 2.1 109 2222 110 200 53 2.1 124 2222K 110 200 53 2.1 124
